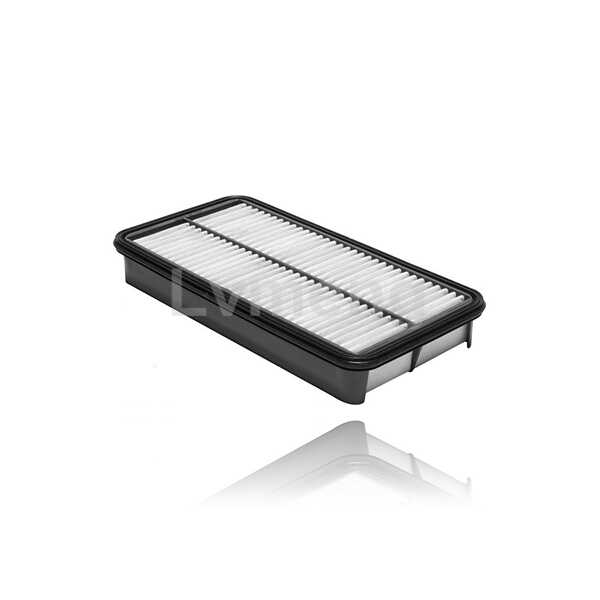

LMA-2124P

LM No.

LMA-2124P

Share

Previous LMA-1106U

Next LMA-2088P

Product Introductions

Description
LM No. LMA-2124P
OEM TOYOTA, PONTIAC
OEM part #

8671014130,1780127010,1780116030,1780164020,1780174020,

1780102020,1780164070,1780164010,178017402083

Market sector Automotive
SIZE
Length 309 mm
Width 152 mm
Height 42 mm
REF NO.
MANN: C31101/1
MAHLE: LX809
HENGST: E550L
BOSCH: 1 987 429 135
FRAM: CA3874
JS: A161
WIX: WA6326

Application
Make Model Year

PONTIAC

TOYOTA

LEXUS ES (F1, F2)
(1989/12 - 1997/12)
PONTIAC TRANS SPORT '89
(1989/07 - 1997/12)
TOYOTA RAV 4 I (SXA1_)
(1994/01 - 2000/09)
TOYOTA COROLLA Compact (_E10_)
(1992/05 - 1999/11)
TOYOTA COROLLA (_E8_)
(1983/06 - 1989/06)
TOYOTA COROLLA (_E9_)
(1987/05 - 1994/09)
TOYOTA COROLLA Compact (_E9_)
(1987/05 - 1995/10)
TOYOTA COROLLA Hatchback (_E7_)
(1979/09 - 1983/09)
TOYOTA COROLLA Liftback (_E8_)
(1983/06 - 1989/05)
TOYOTA COROLLA Liftback (_E10_)
(1992/05 - 1997/04)
TOYOTA COROLLA Liftback (_E9_)
(1987/07 - 1995/10)
TOYOTA COROLLA Station Wagon (_E9_)
(1987/12 - 1992/12)
TOYOTA COROLLA Station Wagon (_E7_)
(1979/12 - 1987/08)
TOYOTA COROLLA (_E7_)
(1979/09 - 1985/09)
TOYOTA COROLLA Wagon (_E10_)
(1992/07 - 1997/04)
TOYOTA CAMRY Saloon (_V1_)
(1983/02 - 1988/07)
TOYOTA CAMRY (_V2_)
(1986/10 - 1993/02)
TOYOTA CAMRY Liftback (_V1_)
(1983/01 - 1988/01)
TOYOTA CAMRY Station Wagon (_V2_)
(1986/11 - 1991/06)
TOYOTA CARINA II Saloon (_T15_)
(1983/08 - 1988/05)
TOYOTA CARINA (TA4L, TA6_L)
(1973/05 - 1983/09)
TOYOTA CARINA E Saloon (_T19_)
(1992/04 - 1997/09)
TOYOTA CARINA E (_T19_)
(1992/04 - 1997/09)
TOYOTA CARINA E Sportswagon (_T19_)
(1993/01 - 1997/09)
TOYOTA CARINA II Saloon (_T17_)
(1987/12 - 1992/06)
TOYOTA CARINA II (_T17_)
(1987/12 - 1992/06)
TOYOTA CARINA II Station Wagon (_T17_)
(1987/12 - 1992/04)
TOYOTA CARINA II (_T15_)
(1983/10 - 1988/05)
TOYOTA CARINA Station Wagon (TA4K, TA6K)
(1978/04 - 1983/09)
TOYOTA CELICA Hatchback (ST16_, AT16_)
(1985/08 - 1989/08)
TOYOTA CELICA Coupe (AT18_, ST18_)
(1989/09 - 1993/11)
TOYOTA CELICA (ST20_, AT20_)
(1993/11 - 1999/11)
TOYOTA CELICA Convertible (ST16_, AT16_)
(1985/08 - 1989/08)
TOYOTA CELICA Convertible (AT18_, ST18_)
(1989/10 - 1993/11)
TOYOTA CELICA Coupe (ST16_, AT16_)
(1987/08 - 1989/08)
TOYOTA COROLLA FX Compact (E8B)
(1984/08 - 1988/05)
TOYOTA PICNIC (_XM10)
(1996/05 - 2001/12)
TOYOTA COROLLA (_E11_)
(1997/04 - 2001/12)
TOYOTA COROLLA Liftback (_E11_)
(1997/04 - 2002/01)
TOYOTA COROLLA Compact (_E11_)
(1997/04 - 2002/01)
TOYOTA CELICA (AT16_, ST16_)
(1985/08 - 1989/08)
TOYOTA AVENSIS (_T22_)
(1997/09 - 2003/02)
TOYOTA AVENSIS Station Wagon (_T22_)
(1997/09 - 2003/02)
TOYOTA COROLLA (_E10_)
(1991/06 - 1999/11)
TOYOTA AVENSIS Liftback (_T22_)
(1997/09 - 2003/02)
TOYOTA RAV 4 I Cabrio (SXA1_)
(1997/12 - 2000/06)
TOYOTA COROLLA Wagon (__E11_)
(1997/04 - 2001/10)
TOYOTA MR 2 II (SW2_)
(1989/12 - 2000/05)
TOYOTA PREVIA (MCR3_, ACR3_, CLR3_)
(2000/02 - 2006/01)
TOYOTA RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_)
(2000/06 - 2005/11)
TOYOTA AVENSIS VERSO (_CLM2_, _ACM2_)
(2001/08 - 2009/11)
